ECODryBlock digital dry block heaters

Laboreszköz katalógus Marketplace 0Cart

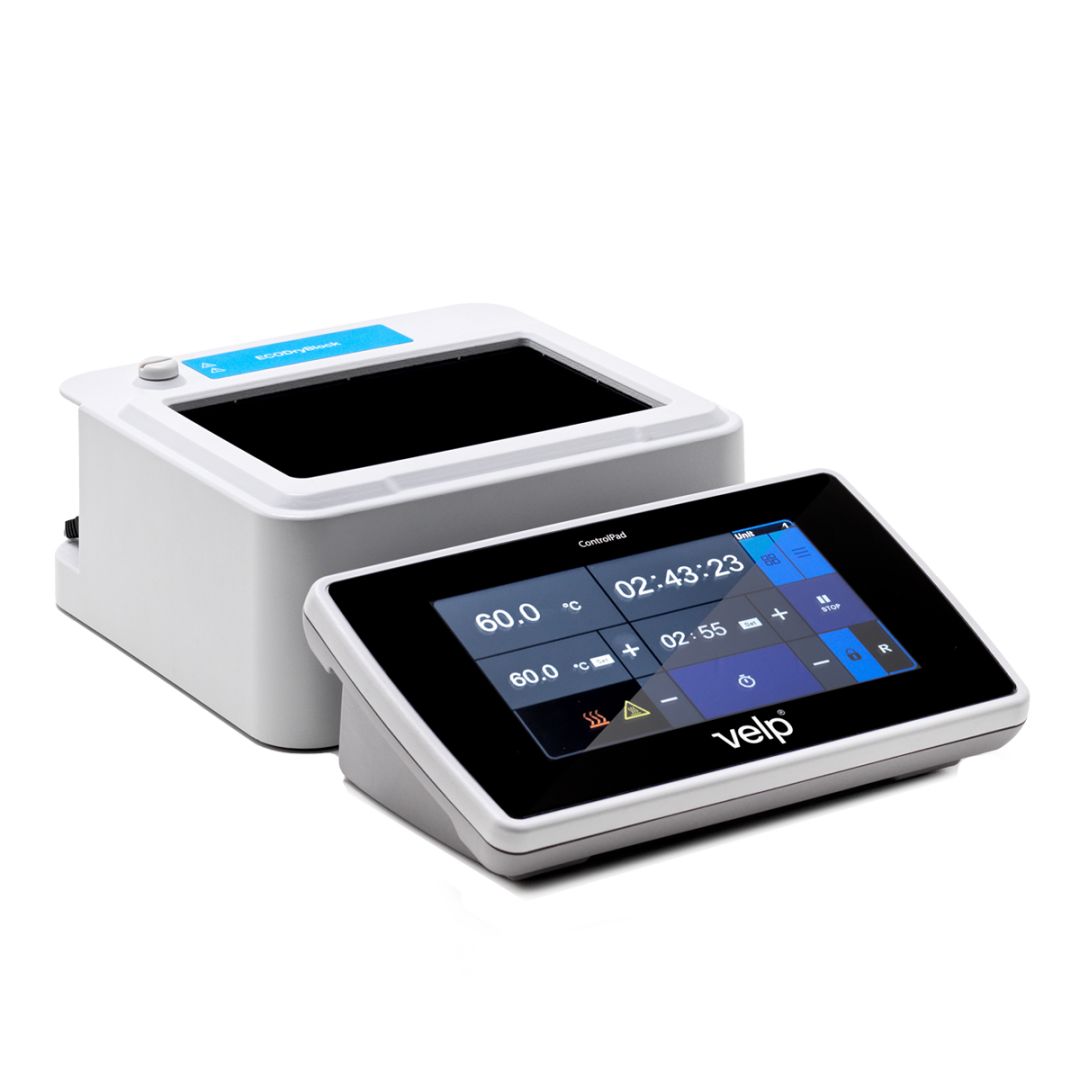

ECODryBlock with control panel

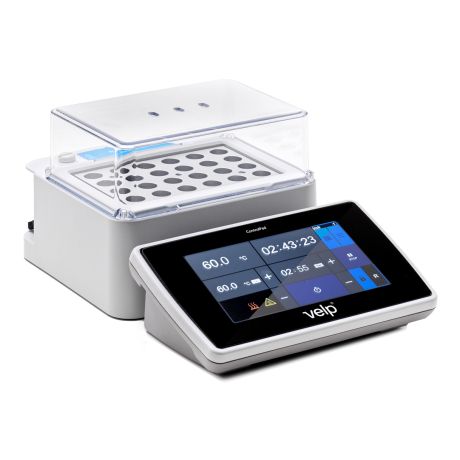

ECODryBlock with control panel and 24 position block

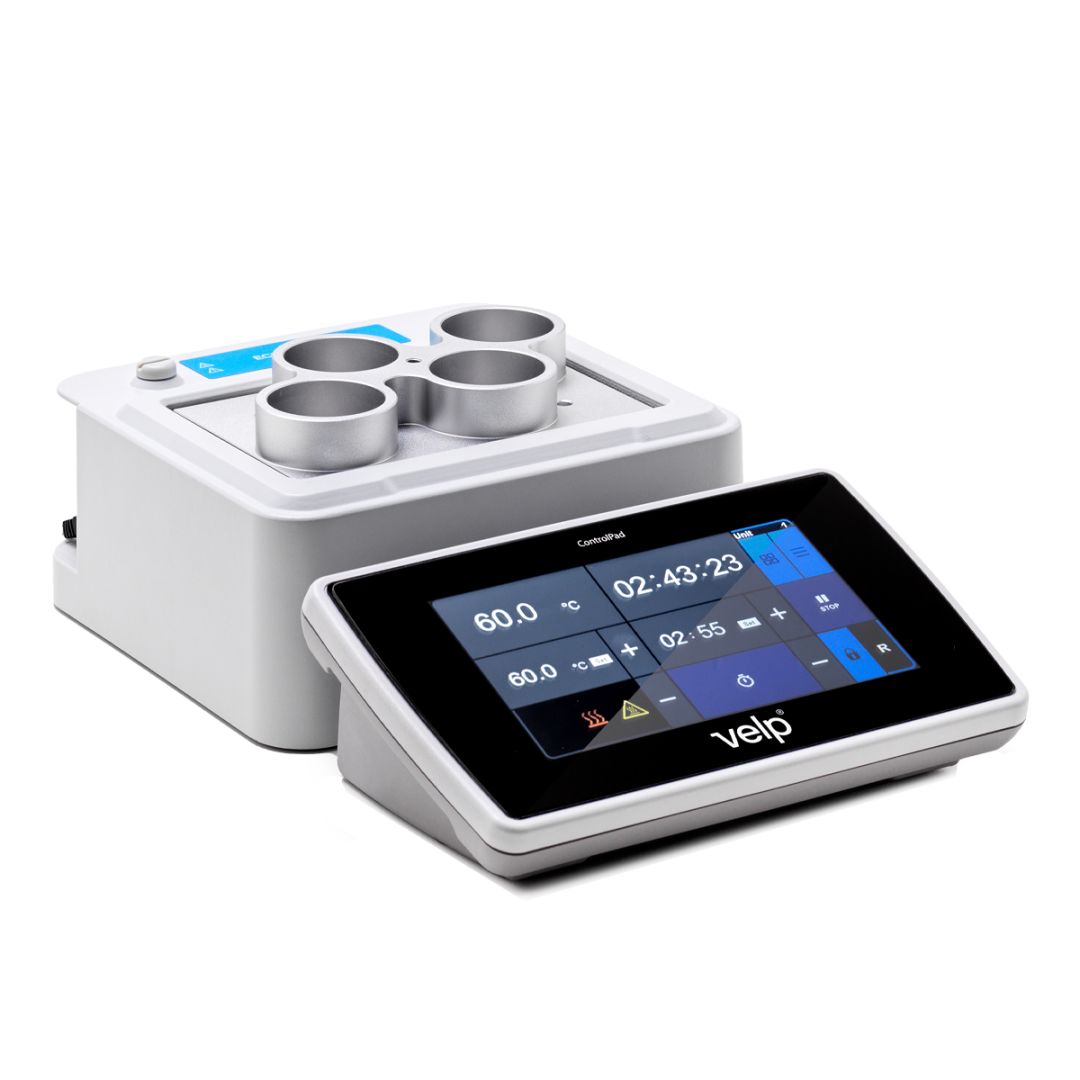

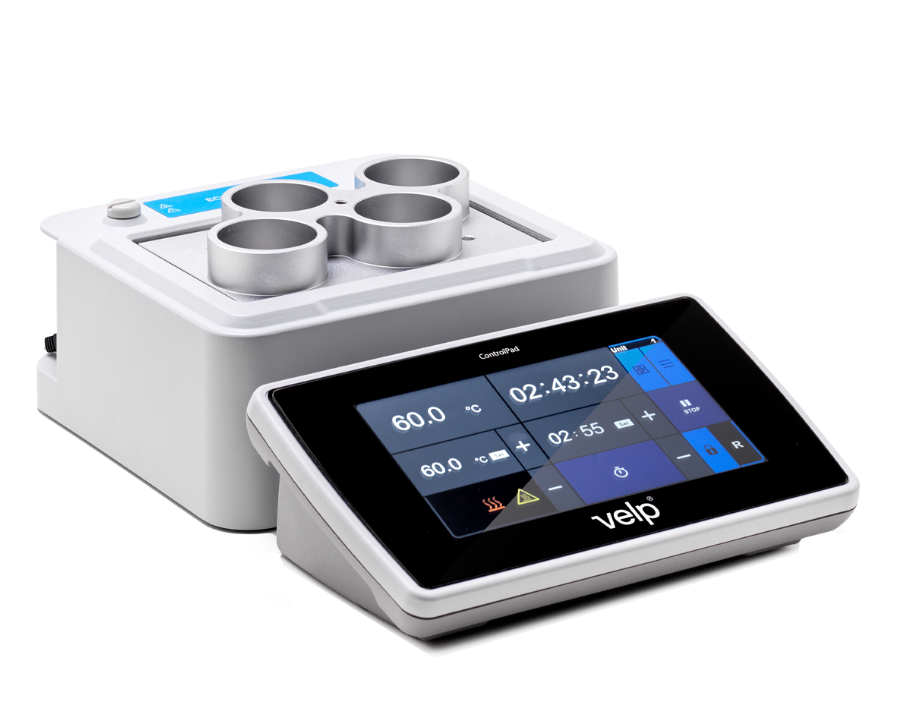

ECODryBlock with control panel and 4 position block

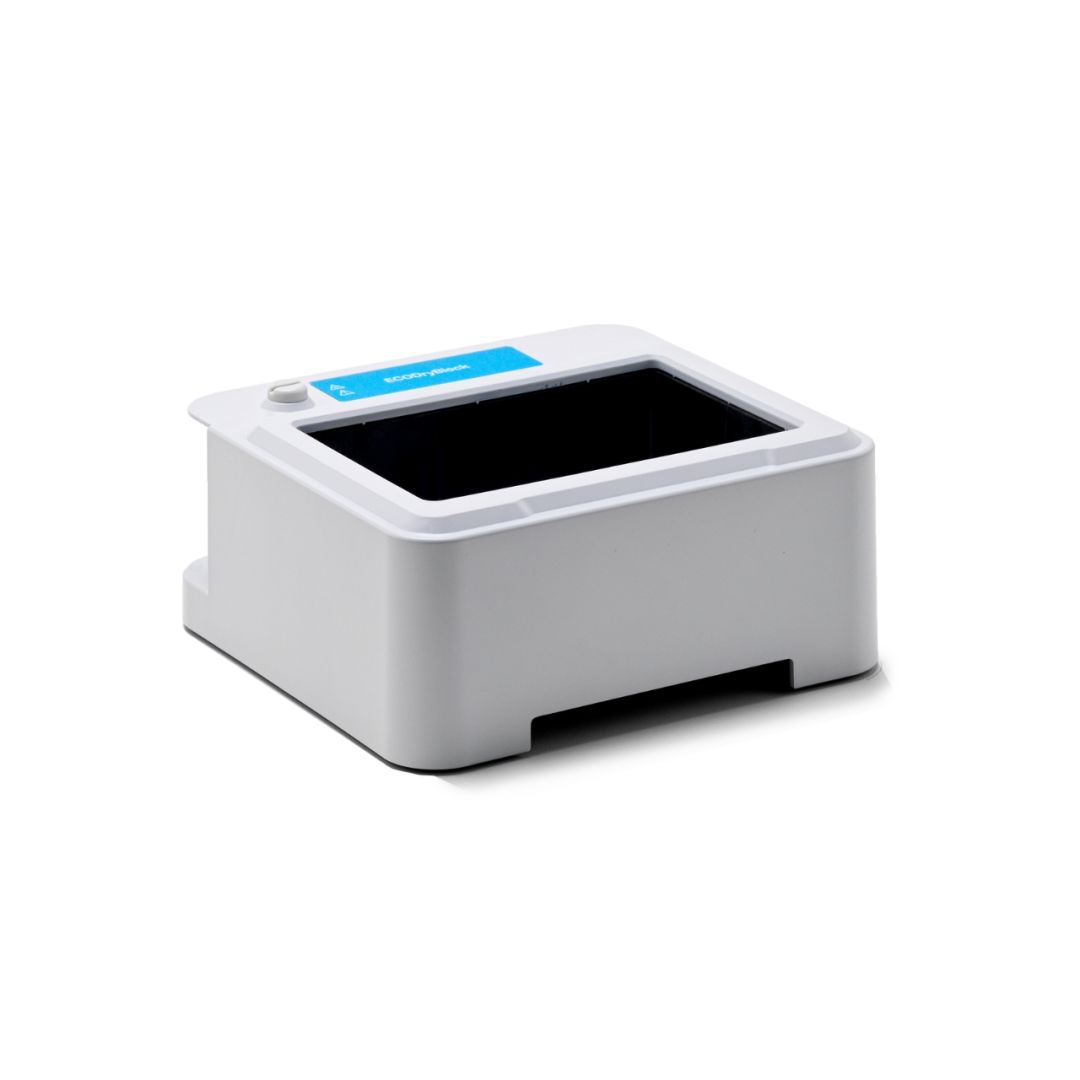

ECODryBlock without control panel

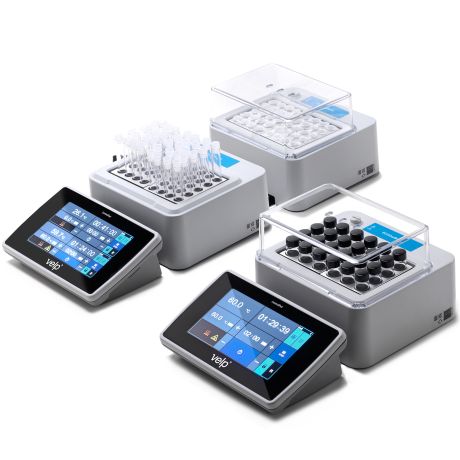

ECODryBlock digital dry block heaters

Velp Scientifica

Request a price

Digitally controlled block thermostat, optionally expandable to 2 modules. With a maximum temperature of 165 °C, it is also suitable for measuring the chemical oxygen demand (COD) of water samples. In addition, it is a good choice for the following applications:

Incubation and sample preparation - including DNA/RNA extraction and purification, enzymatic reactions and activation of cell cultures.
Denaturation and assay preparation - DNA and protein denaturation, SDS-PAGE sample preparation, serum tests, immunoassays and clinical tests such as coagulation and blood urea nitrogen determinations, and in situ hybridizations (ISH).
Physical and chemical tests - melting and boiling point determination, culture medium tests and other analytical protocols.

The 7" touch screen control panel with a chemical-resistant glass surface allows for easy operation. After connecting the second module, the temperature and timer of the two modules can be set independently on the display, so that two types of work processes can be performed simultaneously.

One device (module) can accommodate 2 or 1 aluminum block, depending on the size of the block. The blocks and other accessories (lid, temperature probes, connector for the second module) can be ordered separately for the device.

The ECODryBlock is available with a controller, without a controller (if you want to connect it as a second module to the device with a controller), and in two packages with different blocks.

More details

Technical specifications:	ECODryBlock
Control:	digital
Set-up plate material:	aluminium alloy
Temperature range:	ambient temp. +5 °C - 165 °C
Temperature range steps:	0.5 °C
Temperature homogenity at 37 °C:	±0.2 °C
Temperature homogenity at 60 °C:	±0.4 °C
Temperature homogenity at 165 °C:	±0.5 °C
Temperature stability at 37 °C:	±0.2 °C
Temperature stability at 60 °C:	±0.4 °C
Temperature stability at 165 °C:	±0.5 °C
Timer:	1 minute - 99 hour 59 minute
Dimensions without control panel (w x h x d):	207 x 92.5 x 195 mm
Dimensions with control panel (w x h x d):	228 x 92.5 x 350 mm
Weight without control panel:	1.3 kg
Weight with control panel:	2.1 kg


code

Name

Type

net price

amount

in stock

331.F101A0700

ECODryBlock dry block heater

without controller

Request a price

"Dry block heater module without controller. Optionally, it can be connected behind a device with controller as a second block, the temperature and timer can be controlled independently of the other block. Heating surface material: aluminum alloy Temperature range: ambient temperature +5 °C - 165 °C Temperature range steps: 0.5 °C Temperature homogeneity at 37 / 60 / 165 °C: ±0.2 °C / ±0.4 °C / ±0.5 °C Temperature stability in the block at 37 / 60 / 165 °C: ±0.2 °C / ±0.4 °C / ±0.5 °C Timer: 1 min - 99 hours 59 min Dimensions (W x H x D): 207 x 92.5 x 195 mm Weight: 1.3 kg The accessory A00000531 is required for connection."

331.SA101A0700

ECODryBlock dry block heater

with digital controller

Request a price

"Precise block heater with digital control panel. 7" chemically resistant glass display. An icon on the display warns of a hot surface if the temperature of the device rises above 50°C. Heating surface material: aluminum alloy Temperature range: ambient temperature +5 °C - 165 °C Temperature range steps: 0.5 °C Temperature homogeneity at 37 / 60 / 165 °C: ±0.2 °C / ±0.4 °C / ±0.5 °C Temperature stability in the block at 37 / 60 / 165 °C: ±0.2 °C / ±0.4 °C / ±0.5 °C Timer: 1 min - 99 hours 59 min Dimensions without control panel (w x h x d): 207 x 92.5 x 195 mm Dimensions with control panel (W x H x D): 228 x 92.5 x 350 mm Weight: 2.1 kg"
