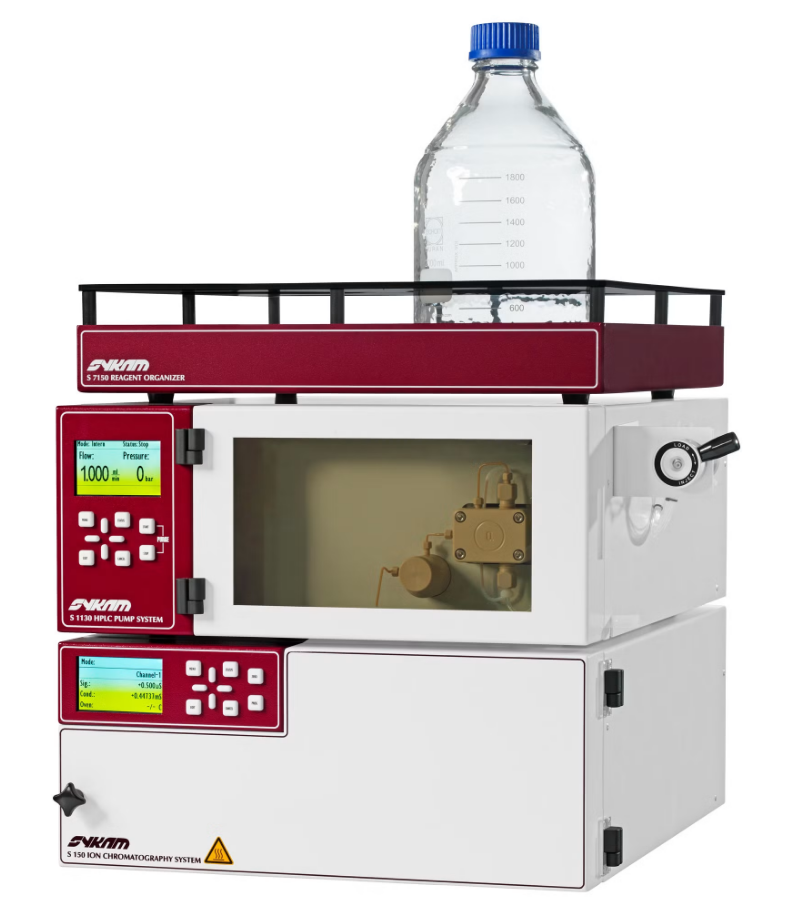

SYKAM S 150 ion chromatograph

Laboreszköz katalógus Marketplace 0Cart

SYKAM automatic anion and cation (dual) determining ion chromatograph

SYKAM S 151 M manual anion determining ion chromatograph

SYKAM S 151 G /AG automatic anion determining ion chromatograph

Double - non-clogging * sampling needle

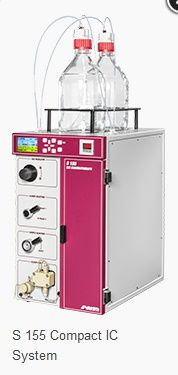

SYKAM S 155 compact ion chromatograph

SYKAM S 150 ion chromatograph

Sykam

Request a price

SYKAM GmbH (Germany) has been active in the chromatography market for more than 35 years. The company was founded in 1984 after the company founder (Klaus-Dieter Meier) left his former workplace, BIOTRONIK.

The founder's sons (Frank and Dirk Meier) later joined SYKAM, so the company became a family business. Their activity depends on the components of HPLC systems - e.g. It started with the development and production of HPLC pumps.

Over the years, the development of devices - in addition to complete HPLC devices - has also included automatic samplers, detectors, classical amino acid analyzers and ion chromatographs.

In 2000, the company moved to its own building, which was expanded in 2013 to meet the constantly growing production space requirements.

In addition to the direct distribution of chromatographs, SYKAM offers a wide range of chromatographic main parts (pump, degasser, detector, preparative pumps, fraction collectors, valves, injector ports, etc.) in OEM construction, or even individual modules, if a system of another manufacturer needs to be supplemented.

SYKAM develops its own devices and manufactures everything in-house. This means a very wide palette, starting from the assembly/soldering of electronic cards, through mechanical processing to the construction of devices and their factory testing.

SYKAM does not use the term "outdated type, there are no more parts for it, buy a new device". They take the necessary parts off the shelf even for their oldest device!

More details

SYKAM's ion chromatographs are presented below:

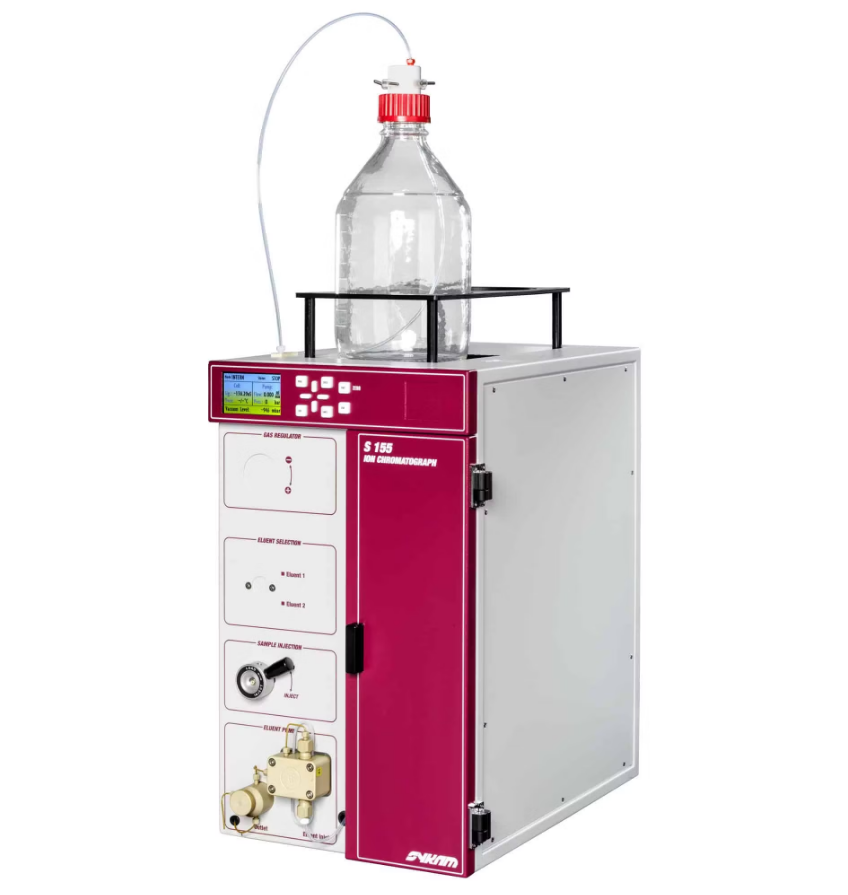

SYKAM's S155-A and S155-C series compact ion chromatographs are suitable for the determination of anions and - without the use of a suppressor - cations with the installation of a suitable column. Sample input is done manually here

From the devices of the S 15x series, you can choose the system composed of the appropriate modules according to the user's needs.

Type S 151-M: for anion determination, with manual injector, isocratic pump
Type S 151-G: for anion determination, with manual injector, quaternary gradient pump

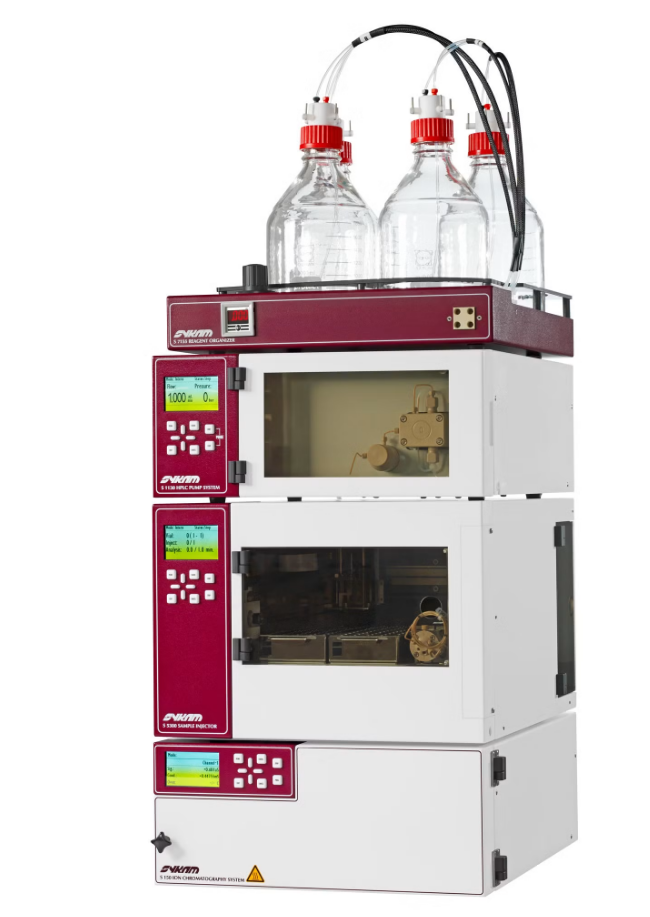

Type S 151-A: for anion determination, with automatic sample dispenser, isocratic pump
Type S 151-AG: for anion determination, with automatic sample dispenser, quaternary gradient pump
Type S 152-M: for cation determination, with manual injector, isocratic pump
Type S 152-G: for cation determination, with manual injector, quaternary gradient pump
S 152-A: for cation determination, with automatic sample dispenser, isocratic pump
S 152-AG: for cation determination, with automatic sample dispenser, quaternary gradient pump

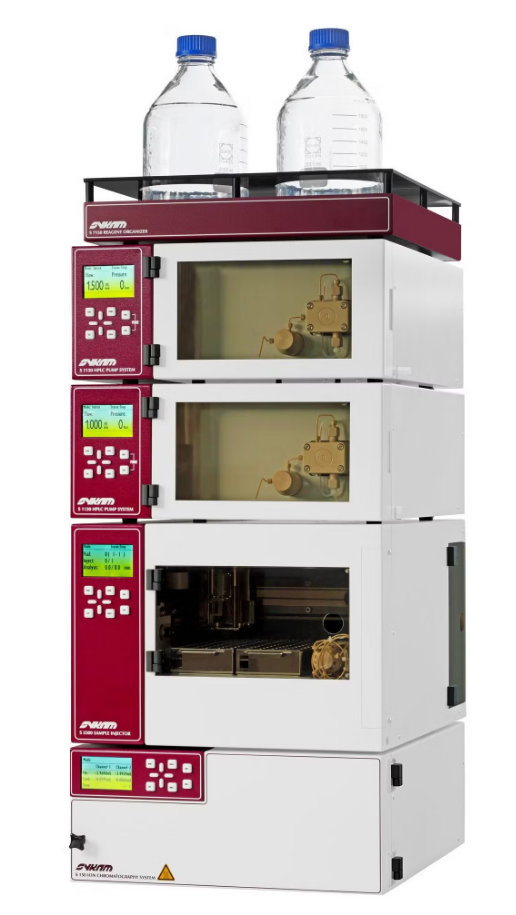

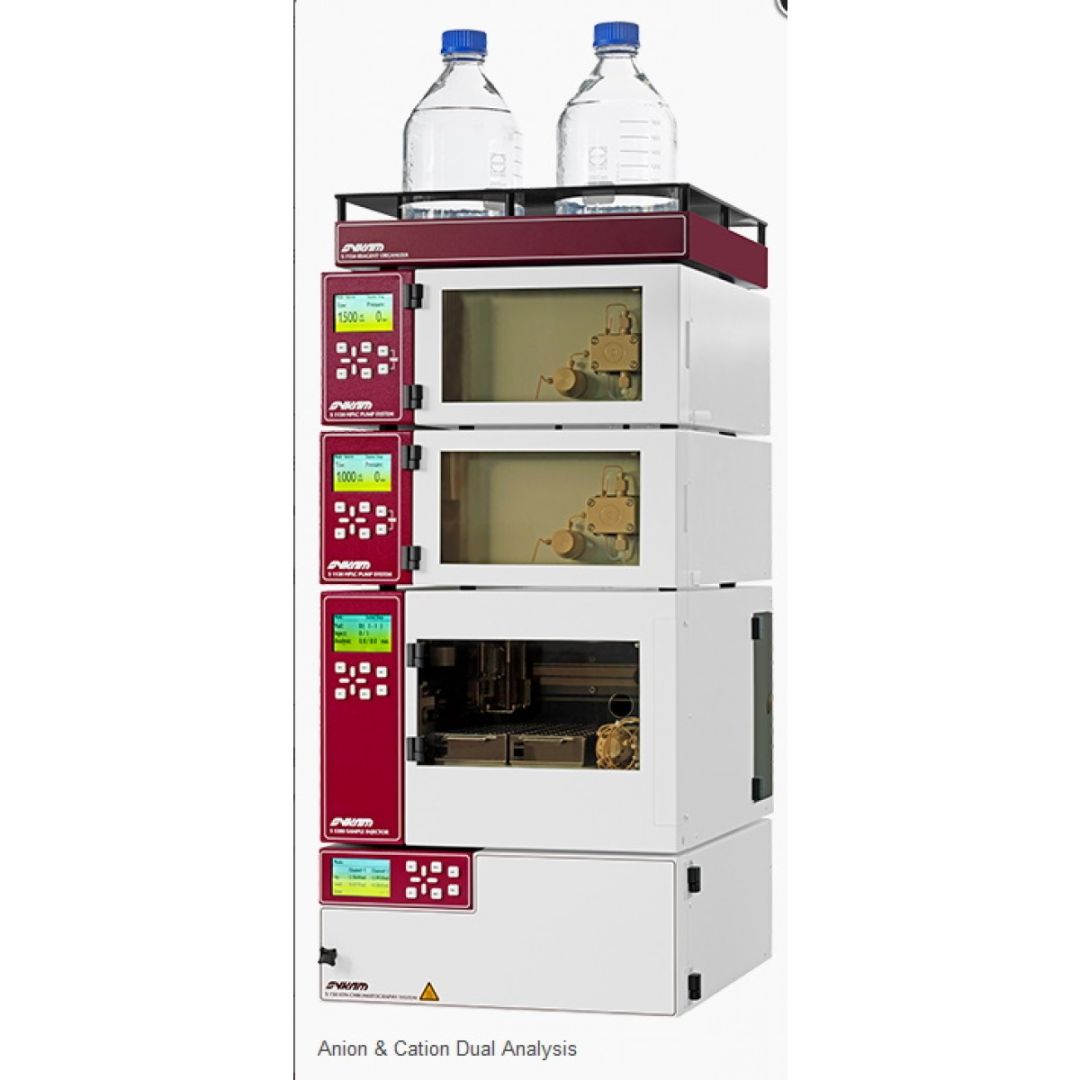

S 153-A DUAL: for simultaneous determination of anion and cation, with automatic sample dispenser, isocratic pump
S 153-AG DUAL: for simultaneous determination of anion and cation, with automatic sample dispenser, isocratic and quaternary gradient pump

As an additional option, the devices can be ordered with a UV/VIS detector.

The devices are computer controlled. The software called "CLARITY" is used for data collection and measurement evaluation. The software is FDA-21 CFR Part 11 compliant.

The hardware is controlled by a version of the CLARITY software supplemented with a control module. The software is user-friendly and easy to learn.

The main characteristics of SYKAM devices:

modular structure - continuously upgradeable system
two double-piston pumps separately for eluent and regeneration solution
built-in column thermostat for tempering the separation column, detector and suppressor
built-in automatic suppressor for anion determinations
high sensitivity conductivity detector; 0-20,000 μS/cm, flow cell volume: 0.76 μl
inert gas atmosphere for carbonated eluents (option)
possibility of manual injection
automatic vacuum pump degassing

Automatic sample change injector:

120 places for 1.5 ml standard sample containers,
or 2 pcs. For 96-well microplates.
Sample heating/cooling (Option) +4-+60 °C..
programmable sample volume: 0.1-999.9 μl

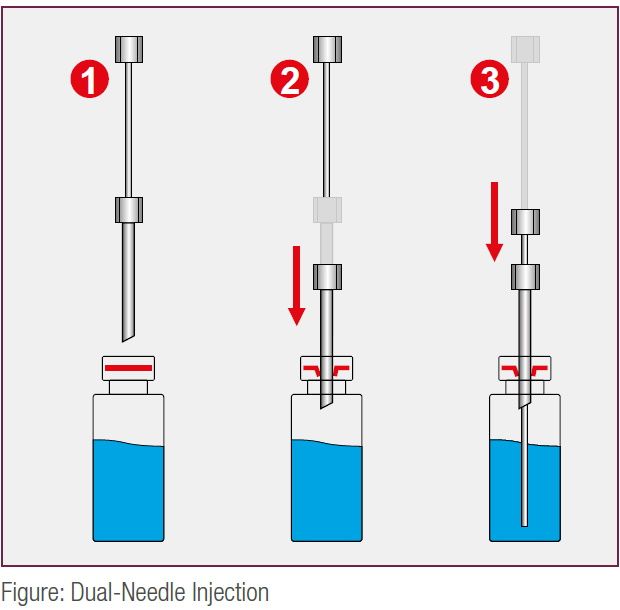

double sampling needle to avoid blockages

You can find more technical information about the available device configurations in the downloadable brochure below, or contact our staff!


code

Type

Name

Characteristics

net price

amount

in stock

15.S004070

S 151-A

Ion chromatograph for anion determination, with automatic sample dispenser, isocratic pump

automatic sample change injector

Request a price

"For routine and research tasks: e.g. analysis of drinking water, tap water, seawater, waste water, rainwater. Modular structure, can be expanded later with the following: cationic module, UV detector, derivatization option, column changeover valve, etc. Measuring range: 20000 uS/cm 1-20 Hz, autozero Temperature stabilized flow cell - single-channel conductivity detector - built-in auto-suppressor, maintenance-free membrane pump, pressure sensor, suppressor protection with overpressure valve, continuous operation in a closed system, no need to replace when capacity is reached, easily regenerated by the user - column thermostat: 30-90 °C, Temperature accuracy: < 0.1 °C Power supply: 100-250 V (47-63 Hz) S1130 isocratic pump (analytical, PEEK), with 1-channel degasser Flow rate: 0.001-10,000 ml/min, Accuracy: ± 1.0 % 1,000 ml/min, pressure range: 0 – 35 MPa (0 – 5800 PSI) programmable, two-piston pump head, minimizing pulsation continuously lubricated camshaft S5300 automatic sample injection system with S6115 PEEK injection valve. X/Y/Z sampling mechanism, self-lubricating bearings, No-Flow-Interruption (NFI) technology: minimized pressure fluctuations during rotation, due to the unique geometry of the stator, the flow is only interrupted for a short time. Dual-edged sampling needle to avoid clogging. Sample capacity: 120 samples (1.5 ml). Sample loop: 100 µL PEEK, wash program. Sample cooling/heating optional (+4 - 60 °C) RS232C, digital I/O Programmable injection volume: 0.1 - 999.9 µL in 0.1 µL steps. Injection accuracy: < 0.5 % (10 µL: approx. 0.25%) S600 reagent holder, isocratic: 1 x 1,000 ml bottle without inert gas supply - Data collection and evaluation unit (PC) and without separation column Size (W x H x D): 396 x 165 x 478 mm"

15.S004161

S 151 AG

Ion chromatograph for anion determination, with automatic sample feeder, quaternary gradient pump

automatic sample change injector

Request a price

Sykam modular ion chromatograph for the determination of anions and cations.

15.S004162

S 151 G

Ion chromatograph for anion determination, with manual injector, quaternary gradient pump

with manual sample injection

Request a price

Sykam modular ion chromatograph for the determination of anions and cations.

15.S010115

S 152 A

Ion chromatograph for cation determination, with automatic sample dispenser, isocratic pump

automatic sample change injector

Request a price

"Modular construction, can later be expanded with the following: - - anionic module with 2nd detector and autosuppressor, - UV/VIS detector with flow cell, - Regaens organizing tray with 4 places Parts of the device: - 1-channel conductivity detector Measuring range: 0-20,000 uS/cm, Temperature stabilized flow cell: 0.76 µl volume, 1-20 Hz sample frequency, autozero function for the entire measuring range - column thermostat: 30-90 °C, Temperature accuracy: < 0.1°C - S1130 isocratic pump (analytical, PEEK), With 1-channel degasser Flow rate: 0.001-10,000 ml/min, Accuracy: ± 1.0 % 1.000 ml / min, pressure range: 0 – 35 MPa (0 – 5800 PSI) programmable, two-piston pump head, minimizing pulsation continuously lubricated camshaft - S5300 automatic sample injection system S6115 with PEEK injection valve. X/Y/Z sampling mechanics, self-lubricating bearings, No-Flow-Interruption (NFI) technology: minimized pressure fluctuation when turning over, due to the unique geometry of the stator, the flow is only interrupted for a short time. Dual-edged sampling needle to avoid clogging. Sample capacity: 120 samples (1.5 ml). Sample loop: 100 µL PEEK, Programmable injection volume: 0.1 - 999.9 µl washing program. Sample cooling/heating optional (+4 - 60 °C) Linearity: Correlation factor > 0.999 (10 ?l injection volume, 500 ?l syringe) Carry over with wash program: < 0.05 % RS232C, digital I/O - S7150 Reagent organizing tray, isocratic, 1 pc. Contains a 1000 ml bottle. - Data collection and evaluation unit (PC) and without separation column"

15.S005600

S 152 AG

Ion chromatograph for cation determination, with automatic sample feeder, quaternary gradient pump

automatic sample change injector

Request a price

Sykam modular ion chromatograph for the determination of anions and cations.

15.S005115

S 152 G

Ion chromatograph for cation determination, with manual injector, quaternary gradient pump

with manual sample injection

Request a price

Sykam modular ion chromatograph for the determination of anions and cations.

15.S010100

S 151-M

Ion chromatograph for anion determination, with manual injector, isocratic pump

with manual sample injection

Request a price

"For routine and research tasks. e.g. analysis of drinking water, tap water, seawater, waste water, rainwater. Modular construction, can later be expanded with the following: cationic module, UV detector, derivatization option, automatic sample feeder, column changeover valve, etc. Measuring range: 20,000 µS/cm 1-20 Hz, autozero Temperature stabilized flow cell - single-channel conductivity detector - built-in auto-suppressor, maintenance-free membrane pump, pressure sensor, suppressor protection with overpressure valve, continuous operation in a closed system, no need to replace when capacity is reached, easily regenerated by the user - column thermostat: 30-90 °C, Temperature accuracy: < 0.1 °C Power supply: 100-250 V (47-63 Hz) S1130 isocratic pump (analytical, PEEK), with 1-channel degasser Flow rate: 0.001-10,000 ml/min, Accuracy: ± 1.0 % 1,000 ml/min, pressure range: 0 – 40 MPa (0 – 6000 PSI) programmable two-piston pump head, minimizing pulsation continuously lubricated camshaft RS232C, digital I/O and analog pressure output S6120 Manual injection valve with 100 µL sample loop (PEEK) mounted on a frame: No-Flow-Interruption (NFI) technology: minimized pressure fluctuation when turning over, due to the unique geometry of the stator, the flow is only interrupted for a short time. S600 reagent holder, isocratic: 1 x 1,000 ml bottle without inert gas supply - Data collection and evaluation unit (PC) and without separation column Size (W x H x D): 396 x 165 x 478 mm"

15.S004851

S 152 M

Ion chromatograph for cation determination, with manual injector, isocratic pump

with manual sample injection

Request a price

Sykam modular ion chromatograph for the determination of anions and cations.

15.S010173

S153-A Dual

Ion chromatograph for simultaneous determination of anions and cations, with automatic sample feeder, 2 PEEK isocratic pumps

automatic sample change injector

Request a price

"with automatic sample injection. Elements of the system: - S 150 Ion chromatograph module (measurement range: 20,000 µS/cm 1-20 Hz sample frequency, autozero function for the entire measurement range) - Temperature stabilized flow cell - two conductivity detector channels - built-in electronic anion autosuppressor, optional built-in electronic membrane cation suppressor module (must be ordered separately) - column thermostat: 30-90°C, Power supply: 100-250 V (47-63 Hz) - 2 S1130 isocratic pumps (analytical, metal-free, PEEK), programmable dual pump pump head, low pulsation (camshaft under continuous lubrication). RS232 interface, digital I/O and analog pressure output. Power supply: 100-250 V (47-63 Hz) both with built-in 1-channel vacuum degasser - S5300 automatic sample injection system with S6165 PEEK injection valve (2 sample loops). X/Y/Z sampling mechanism, self-lubricating bearings. Dual-edged sampling needle to avoid clogging. Sample capacity: 120 samples (1.5 ml). Carry over < 0.05% (with washing program) Power supply: 100-250 V (47-63 Hz) Sample cooling/heating optional (+4 - 60 °C) RS232C, digital I/O Programmable injection volume: 0.1 - 999.9 µl in 0.1 µl steps. Accuracy of injection: < 0.5 % (10 µl: approx. -0.25%) S7150 reagent holder, 2 x 1,000 ml bottles, without inert gas supply - Data collection and evaluation unit (PC) and without separation column"
