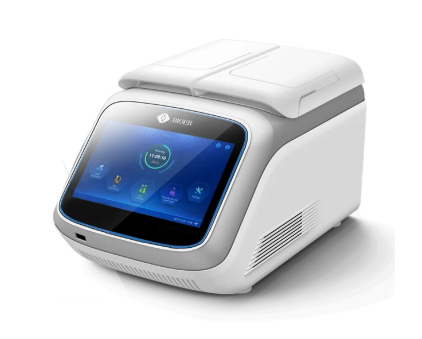

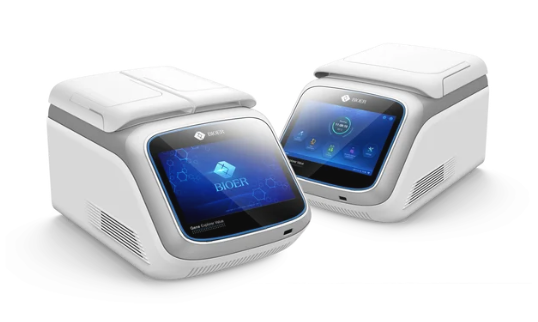

Bioer GeneExplorer™ PCR Instruments – Fast, Accurate and Reliable Measurements
Bioer’s latest GeneExplorer™ series combines top-quality temperature control with a clean, modern look. The rugged yet elegant instruments offer the same accuracy and stability as the world’s leading brands thanks to the latest Peltier technology and unique alloy blocks. Ideal for routine laboratory PCR tests, research tasks and diagnostic measurements.
- Even heat distribution and fast heat-up for perfect and repeatable results.
- Large color touch screen (8”) with easy-to-understand menu system.
- Smart Hot Lid that automatically adjusts height and pressure to different tubes, preventing evaporation and contamination.
- Quiet operation 55 dB.
- Available in several versions, tailored to the specific needs of different application areas.
Specifications
| Specifications | GE-96G | GE-48DG |
|---|---|---|
| Sample capacity: | 96 x 0.2 ml | 48 x 0.2 ml - 2 Block |
| Temperature range: | 4 - 105 °C (resolution 0.1 °C) | 4 - 105 °C (resolution 0.1 °C) |
| Average cooling rate: | ≥2.5 °C / sec | 3 °C / sec |
| Average heating rate: | ≥3.5 °C / sec | 3.5 °C / sec |
| Temperature uniformity: | ≤± 0.3 °C | ≤± 0.25 °C |
| Temperature accuracy: | ≤ 0.2 °C | ≤ 0.2 °C |
| Hot-lid temperature range: | 30 - 110 °C | 30 - 110 °C |
| Gradient function: | yes, 12 columns | yes, 24 columns |
| Temperature differential range: | 1 - 42 °C | 1 - 42 °C |
| Gradient temperature range | 30 - 99 °C | 30 - 99 °C |
| Memory: | ≥2000 programs on board , unlimited with USB flash drive expansion | ≥2000 programs on board , unlimited with USB flash drive expansion |
| Kijelző: | 8" touch screen | 8" touch screen |
| Network Connections: | USB, LAN, WiFi | USB, LAN, WiFi |
| Hot-lid mode: | One-time locking with handle | One-time locking with handle |
| Mobile App compatibility | Android / iOS | Android / iOS |
| Dimensions (l x w x h): | 420 x 269 x 254 mm | 420 x 269 x 254 mm |
| Weight: | 13 kg | 13 kg |
| Power Supply: | 600W | 1200W |
| Voltage: | 100V-240V–50/60Hz | 100V-240V–50/60Hz |
